The Physics Behind the Turntable: How One Person Moves Tonnes of Steel

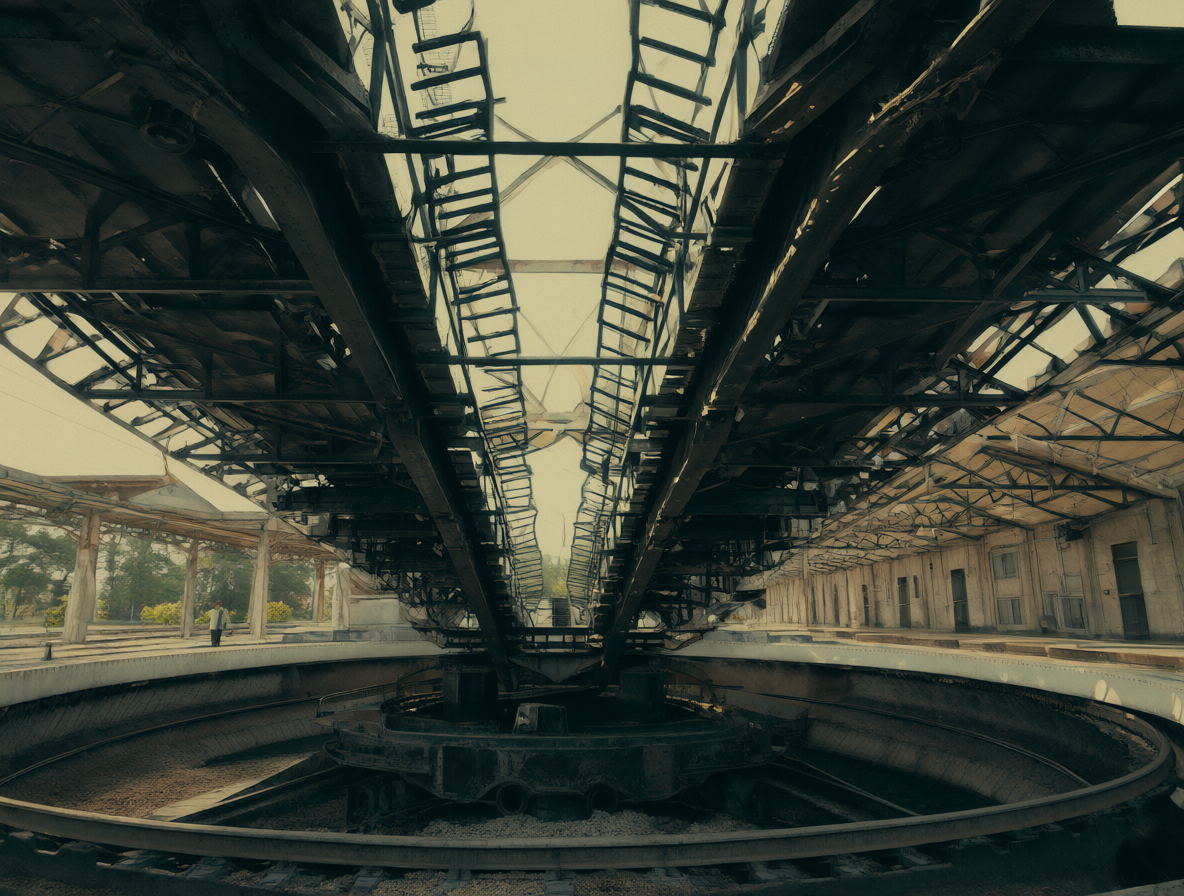

It is easy to be blown away by the sheer scale of a railway turntable. These structures are designed to support locomotives weighing dozens or even hundreds of tons, resting on massive iron bridges that span over tracks. At first glance, it seems completely impossible for a single person to maneuver such heavy machinery. How could one human possibly rotate a platform that supports the weight of an entire train?

However, the reality is rooted in engineering and physics rather than brute strength. When we break down how these machines work, it becomes clear that a lone operator can indeed control the rotation.

The Power of Balance

The first key factor is the structural design of the turntable itself. It functions as a rotating bridge perfectly centered over a central pivot point. The weight of the locomotive and the bridge isn’t concentrated at one end; it is distributed symmetrically across the axis.

This balance means that the operator doesn’t have to overcome the total weight of the machine. Instead, they only need to overcome the relatively small friction present in the central pivot bearings and the supporting wheels.

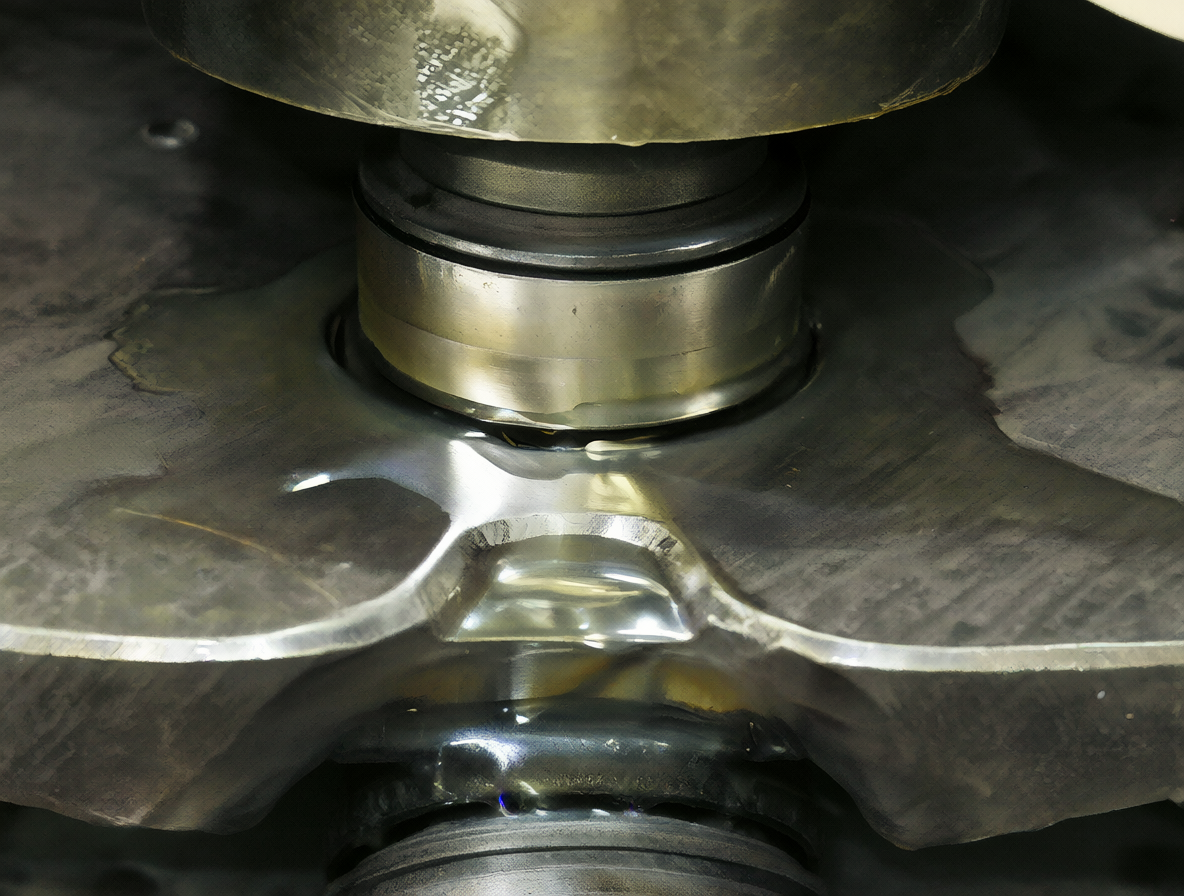

Low-Friction Bearings

The second factor is the use of high-quality bearings and lubrication. Both the central pivot and the side supports are designed for minimal resistance, often using lubricated bushings or metal-on-metal rolling contacts.

This allows a massive locomotive to be moved with surprisingly little force—similar to how a single person can push a heavy wagon across flat ground.

The Leverage Factor

Finally, the operator doesn’t use their bare arms to turn the bridge. Instead, they utilize a long bar or crank attached to the structure. This acts as a lever, multiplying the torque applied by the person and making the task much more efficient.

In conclusion, moving a turntable isn’t about lifting tons of steel; it’s about mastering balance, minimizing friction, and using leverage.
